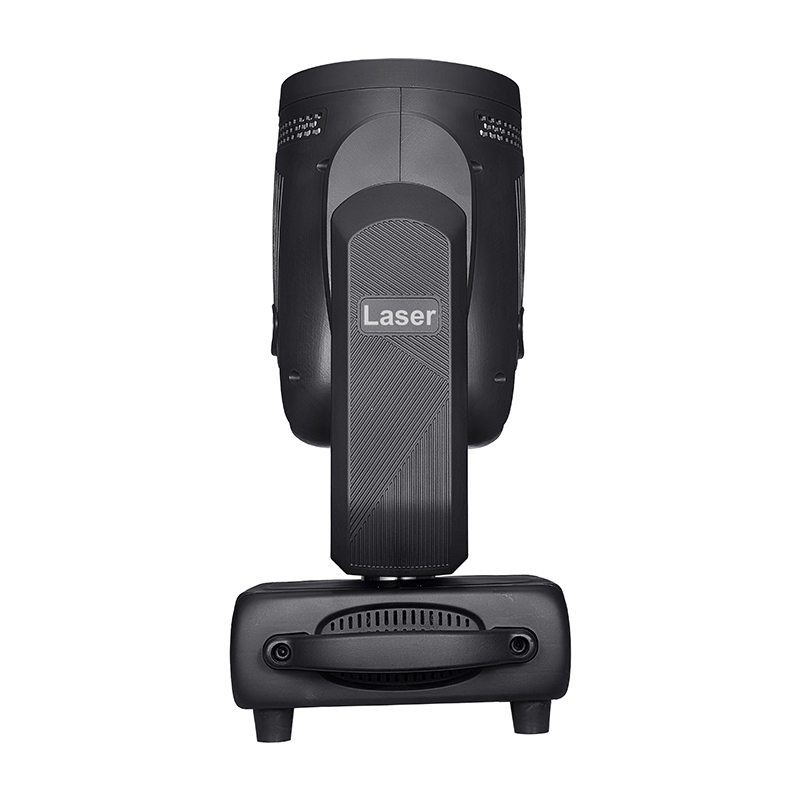

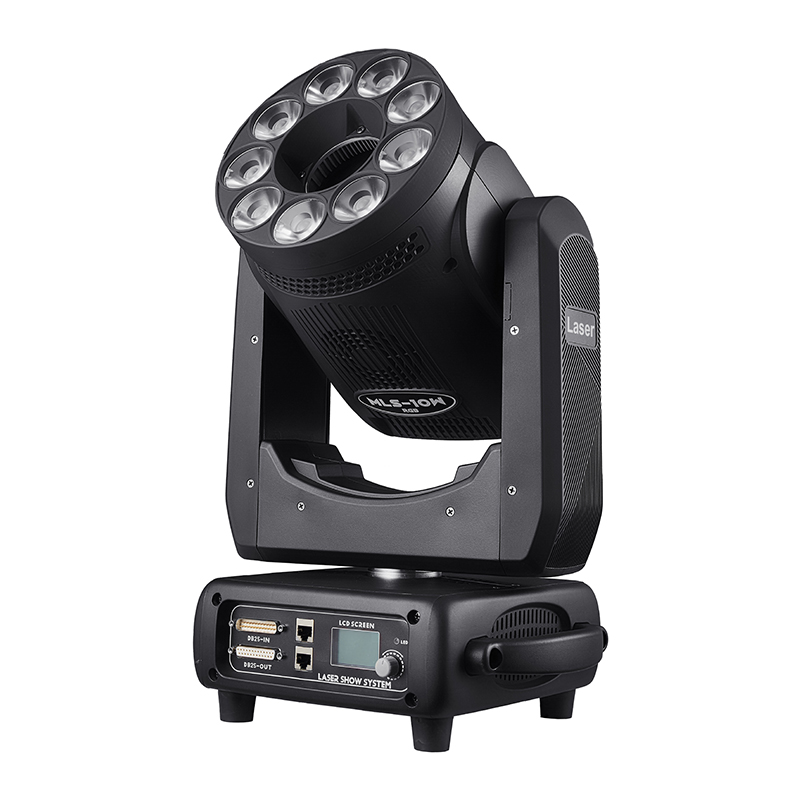

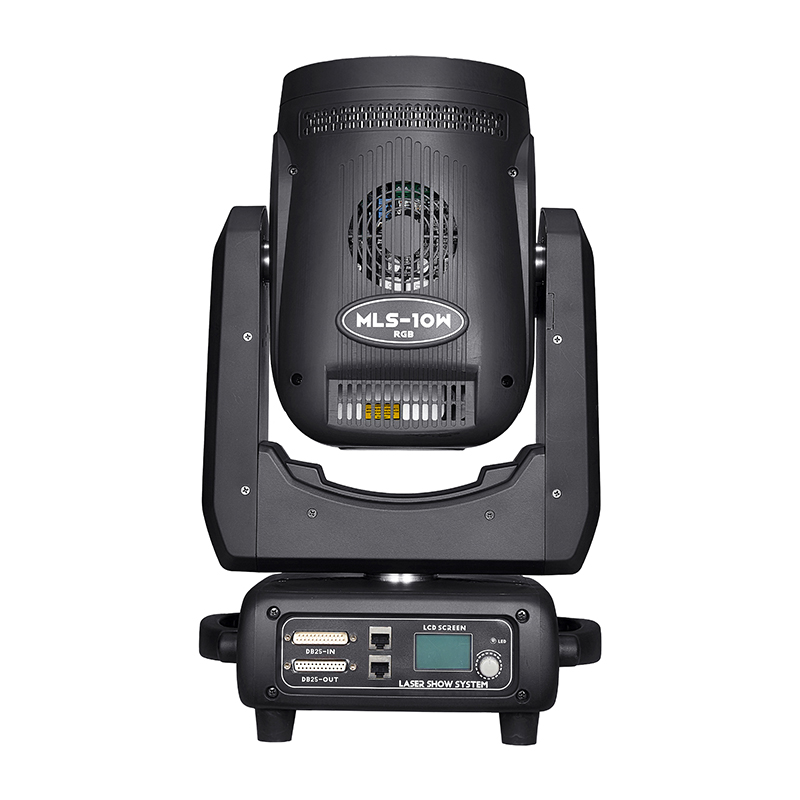

3/5/10w Laser with LED RGB Wash Light

Rated voltage: AC110-220V　　

Moving head laser + LED coloring light

Rated frequency: 50～60Hz

Rated power: 300W　　　　

Laser color: RGB full color

Laser power: RGB 10W

Laser light source: R3w/638nm G3w/525nm B4w/447nm

Laser pattern: 256 laser animation patterns

Modulation signal: TTL modulation (analog modulation)

Scanning system: galvanometer scanning 30KPPS

Scanning angle: plus or minus 20 degrees

Stepping motor: two-phase 57 motor 2

Horizontal: 540 degrees Vertical: 270 degrees

LED coloring configuration: 9 20W four-in-one high-brightness LED lamp beads

Control mode: DMX512, voice-activated, self-propelled, computer ILDA interface, network cable Art-Net.

Control channels: 30 DMX512 control channels

DMX effects: single pattern mode, can be respectively broken pen, strobe, rotation, movement, tumbling, sub-picture, gradual drawing, color change, change the size and other functions.

Function: Can be controlled by laser software such as Pierce QSFB3/FB4 or Fire Phoenix.

The ilda control adopts automatic electronic transfer switch, with scanning system error protection and laser light shutdown protection.

Use Note: Ambient temperature control in 0 ~ 35 ℃, dry and less dusty environment can reduce the laser power attenuation, extend the life of the lamps!

Suitable places: disco, bars, nightclubs, concerts, advertising and promotion, etc.　

Cooling system: fan forced cooling
